#361 Posted: 11/21/2019 6:15:16 AM

veb

1 likes in 38 posts.

Group: User

Wrote
Unfortunately, this cannot be done yet.

Is there any other extension for smath that allows this?

#362 Posted: 11/21/2019 6:26:21 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Yes, ZedGraph Region supports such axes.

Russia ☭ forever, Viacheslav N. Mezentsev

#363 Posted: 11/21/2019 8:46:38 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
It is necessary to display a logarithmic graph, how to do it in smath?

Try X_Y Zgraph.

Project Bode plot.sm (27 KiB) downloaded 75 time(s).
2D Plot Stem log10 DECADES Bode.sm (168 KiB) downloaded 67 time(s).

#364 Posted: 11/21/2019 10:11:20 AM

veb

1 likes in 38 posts.

Group: User

Uni and Jean Giraud thank you very much!!!

ZedGraph Region made a logarithmic coordinate axis and build everything

#365 Posted: 11/21/2019 12:41:21 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
ZedGraph Region made a logarithmic coordinate axis and build everything

Such applications are very limited, for convenience.
IMHO, not much useful as we are born Cartesian sight.

#366 Posted: 11/21/2019 1:51:27 PM

Arie

93 likes in 285 posts.

Group: User

Wrote

Wrote
ZedGraph Region made a logarithmic coordinate axis and build everything

Such applications are very limited, for convenience.
IMHO, not much useful as we are born Cartesian sight.

I disagree. In electronics engineering we often deal in frequency domain with such applications as filter design, EMI/EMC, control.. just to name a few. Being able to plot on logarithmic scale is necessary in such applications.

Feel free to join the SMath Studio Users Discord Channel: https://discord.gg/PayZpJW

#367 Posted: 11/21/2019 1:56:37 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Such applications are very limited, for convenience.
IMHO, not much useful as we are born Cartesian sight.

A great utility is the logpts for convenient tabulation/export.
Very useful to adequately populate the vertical region and not
over populate the flat region, especially for interpolation.

Utilities logpts Populate Quick.sm (14 KiB) downloaded 54 time(s).

#368 Posted: 11/21/2019 6:27:17 PM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

Wrote

Wrote
Unfortunately, this cannot be done yet.

Is there any other extension for smath that allows this?

The maxima plugin allows for log plots (all functions of the draw package are available, the draw commands generate images which can be displayed using image region. Alternatively, there are interactive draw regions provided by the plugin.

See for example Ashby style material property charts

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#369 Posted: 11/22/2019 12:51:15 AM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote

Wrote

Wrote
Unfortunately, this cannot be done yet.

Is there any other extension for smath that allows this?

The maxima plugin allows for log plots ...

Hi. Can try this other one also, in SMath lang.

examples MNA RLC.sm (219 KiB) downloaded 85 time(s).
examples MNA RLC.pdf (318 KiB) downloaded 77 time(s).

Best regards.
Alvaro

1 users liked this post

frapuano 11/22/2019 4:28:00 AM

#370 Posted: 11/22/2019 6:15:28 AM

veb

1 likes in 38 posts.

Group: User

Wrote

Hi. Can try this other one also, in SMath lang.

examples MNA RLC.sm (219 KiB) downloaded 85 time(s).
examples MNA RLC.pdf (318 KiB) downloaded 77 time(s).

Best regards.
Alvaro

wow !!!
When Uni told me that the X-U region does not support the logarithmic axis, I was upset and thought that I could do it in a standard tool. But I could not even imagine that it would be so difficult.
ZedGraf region perfectly copes with the task, it is possible to make legends (have not yet learned). We rarely use charts in calculations.

#371 Posted: 11/22/2019 1:15:33 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
When Uni told me that the X-U region does not support the logarithmic axis, I was upset

Disambiguate:
Smath does not have the Cartesian x,y log axis from command line
like Mathcad 11 and earlier. In lieu X_Y ZedGraph plugin.
I guess Uni [our Viacheslav] is same from former Mathsoft Collaboratory.

#372 Posted: 11/25/2019 12:47:19 PM

Oscar Campo

124 likes in 298 posts.

Group: Moderator

Wrote
Hello!
Help with this extension.
It is necessary to display a logarithmic graph, how to do it in smath?
I looked at the settings did not find such an opportunity.

Hi, maybe you can use the information of this post: https://en.smath.com/forum/yaf_postsm7005_Signals-and-Systems.aspx#post7005

1 users liked this post

frapuano 11/25/2019 3:05:00 PM

#373 Posted: 11/25/2019 3:32:02 PM

veb

1 likes in 38 posts.

Group: User

Wrote

Hi, maybe you can use the information of this post: https://en.smath.com/forum/yaf_postsm7005_Signals-and-Systems.aspx#post7005

Thanks, I'll keep it in mind.
But while the ZedGraph Region completely suits me.

#374 Posted: 11/25/2019 11:47:48 PM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
But while the ZedGraph Region completely suits me.

What you can do in the linear Cartesian,
you can subdivide between integer values of the quick plot.
You can subdivide in any number of sub-intervals and log10
these sub-intervals. Then plot the stems at those intervals.

Utilities logpts SQRT X,Y.sm (28 KiB) downloaded 56 time(s).

#375 Posted: 2/9/2020 8:34:10 AM

Martin Kraska

1222 likes in 2150 posts.

Group: Moderator

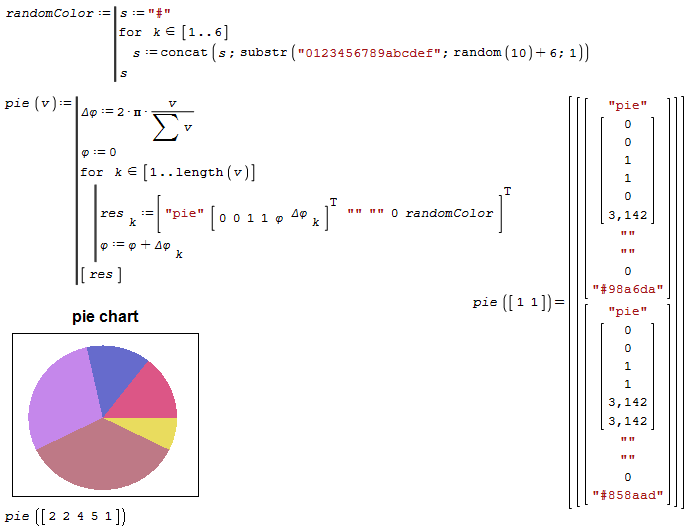

Pie chart with random colors

piechart.sm (9 KiB) downloaded 57 time(s).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

4 users liked this post

frapuano 2/9/2020 2:03:00 PM, Вячеслав Мезенцев 2/9/2020 10:07:00 AM, NDTM Amarasekera 2/9/2020 11:21:00 AM, Fridel Selitsky 2/9/2020 4:26:00 PM

#376 Posted: 2/9/2020 10:03:04 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

Wrote
Pie chart with random colors

Thanks Martin, interesting but not Smath native.
Obviously fails SS 6179 and no use for concluding a document.

Cheers ... Jean

#377 Posted: 4/22/2020 6:54:11 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Updated.

setprop() function changed for support ZedGraph region.

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

sergio 4/22/2020 7:40:00 AM, frapuano 4/22/2020 7:52:00 AM

#378 Posted: 4/22/2020 9:04:28 PM

João Felipe Seráfico Melo

7 likes in 62 posts.

Group: User

Awesome!

I've just tested it and it fixes the Viewer issue I mentioned in another post.

Any chance it can access the configurations of indivual plots inside a ZedGraph Region? In other words, is it possible to address specific Traces?

#379 Posted: 4/23/2020 1:59:24 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

It is possible, but not yet implemented. Also for the ZedGraph region the new Name property is not saved yet.

Russia ☭ forever, Viacheslav N. Mezentsev

#380 Posted: 5/10/2020 9:15:31 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

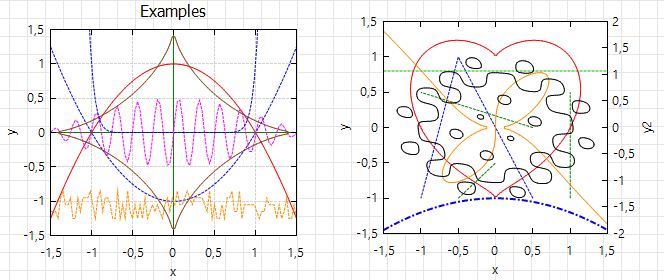

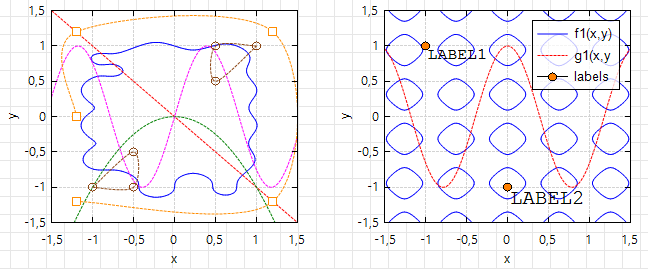

Updated.

Changes:

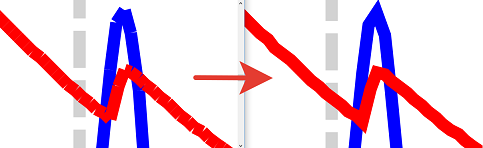

- trace quality improved;
- now default value for AntiAlias is true;
- Y2 grid lines added;
- setprop() function improved.

Theoretically, we can set the dash style for implicit functions as well, but this is more difficult to implement.

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

frapuano 5/10/2020 10:35:00 AM, Andrey Ivashov 7/16/2020 4:55:00 AM
