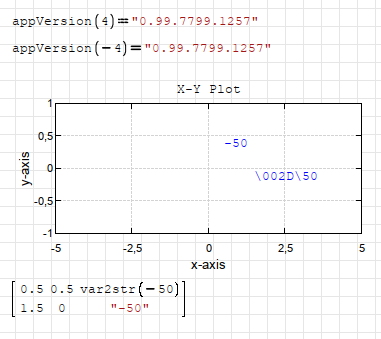

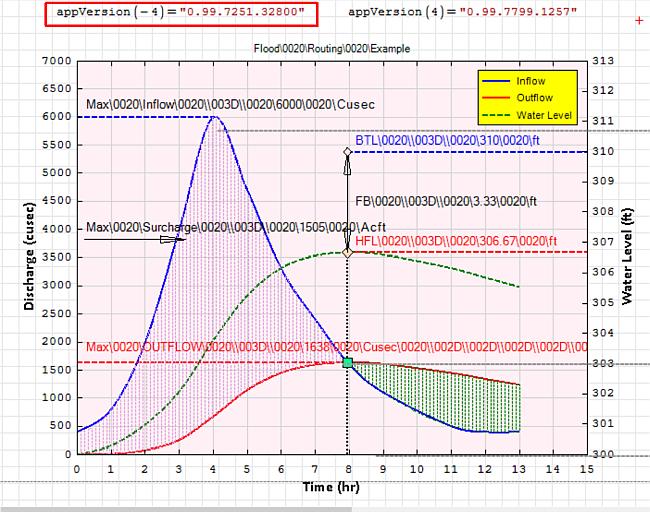

In latest SS 99.7799, I experience a label error similar to image as shown.
Some previous files show this error.

I couldn't replicate this bug but if you have it then there it is.
Maybe I don't have old files that particular versions which gives this bug.
But I can tell there is another one.

#442 Posted: 5/11/2021 1:15:47 AM

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Wrote
Originally Posted by: ndtma [url=/forum/yaf_postsm70673_X-Y-Plot-Region.aspx#post70673][/url]In latest SS 99.7799, I experience a label error similar to image as shown.
Some previous files show this error.

I couldn't replicate this bug but if you have it then there it is.
Maybe I don't have old files that particular versions which gives this bug.
But I can tell there is another one.

Hello.
Thanks for the feedback. I also had this problem.

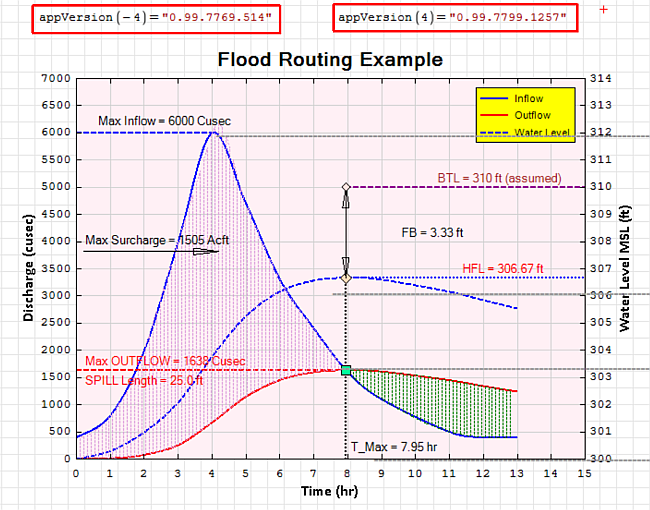

Therefore, I downloaded and checked the file of Alyles and observed the error as shown in my last post.

Consequent to your post, I checked my collection and observed a strange situation
with a one saved in version 99.7769 where no such error occurred when opened with 99.7799.

On the other hand, a similar file in 99.7251 showed the error as shown.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#443 Posted: 5/11/2021 1:42:13 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

These numbers encode the text. Andrey changed something in new versions and I need to make changes in the plugin. Hopefully this only affects the display of the data.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

NDTM Amarasekera 5/11/2021 6:59:00 AM

#444 Posted: 5/11/2021 3:14:19 AM

Andrey Ivashov

2269 likes in 3729 posts.

Group: Super Administrator

Wrote
These numbers encode the text. Andrey changed something in new versions and I need to make changes in the plugin. Hopefully this only affects the display of the data.

You're right, Viacheslav.

You need to use this line of code to decode text entries:

Quote
TermsConverter.DecodeText(txt)

As I already mentioned, we have such kind of issues for a long time already. But in one of the latest beta versions I've made encoding more strict, so issues appears much more often now. Let's say that it is our chance to catch them and fix.

Best regards.

2 users liked this post

sergio 5/11/2021 6:58:00 AM, NDTM Amarasekera 5/11/2021 6:59:00 AM

#445 Posted: 5/12/2021 1:17:24 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Plugin updated. Please try.

Changes:
- plug-in corrected to respect latest SMath Studio API changes.

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

NDTM Amarasekera 5/12/2021 2:32:00 AM, sergio 5/12/2021 7:20:00 AM

#446 Posted: 5/12/2021 2:33:13 AM

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Thanks. It works now.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#447 Posted: 5/25/2021 11:09:50 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

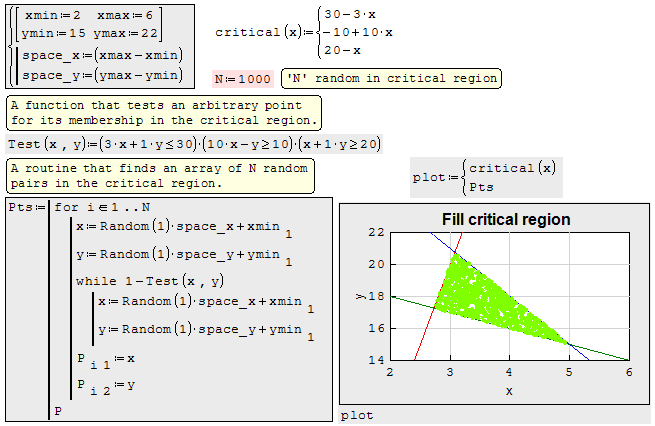

Small piece of code for filled 2-D contour plot in the XY plot plugin.

FillContour.sm (34 KiB) downloaded 366 time(s).
FillContour.pdf (306 KiB) downloaded 350 time(s).

Best regards
Alvaro.

2 users liked this post

sergio 5/26/2021 4:38:00 AM, Fridel Selitsky 5/26/2021 12:52:00 AM

#448 Posted: 5/26/2021 9:49:23 AM

Jean Giraud

983 likes in 6866 posts.

Group: User

#449 Posted: 5/26/2021 1:54:01 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Added contour levels over the filled 2-D contour plot.

ContourLevels.sm (87 KiB) downloaded 71 time(s).
ContourLevels.pdf (1 MiB) downloaded 62 time(s).

Best regards
Alvaro.

4 users liked this post

IVR 6/12/2021 2:02:00 PM, Вячеслав Мезенцев 5/26/2021 2:17:00 PM, sergio 5/26/2021 3:27:00 PM, Fridel Selitsky 5/26/2021 5:17:00 PM

#450 Posted: 6/11/2021 8:01:38 AM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Slightly modified for accept loops and conditionals in the function procedure for functions like Mandelbrot set.

MandelbrotSet.sm (60 KiB) downloaded 73 time(s).
MandelbrotSet.pdf (772 KiB) downloaded 45 time(s).

Best regards
Alvaro.

3 users liked this post

Вячеслав Мезенцев 6/11/2021 10:11:00 PM, João Felipe Seráfico Melo 6/11/2021 8:04:00 AM, Fridel Selitsky 6/11/2021 10:09:00 AM

#451 Posted: 10/25/2021 9:09:10 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Plugin updated. Please try.

Changes:

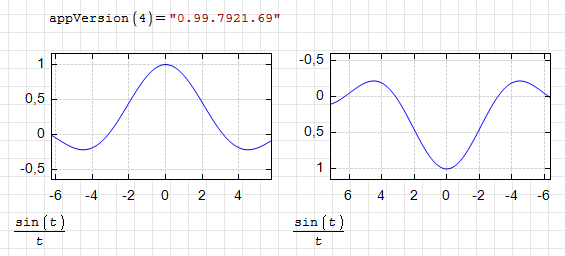

- fixed an issue with incorrect drawing of grid lines when changing the direction of the axis.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

sergio 10/25/2021 11:46:00 AM

#452 Posted: 11/4/2021 7:17:27 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

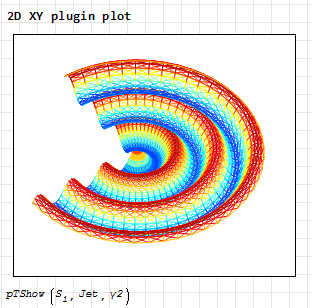

A colormaped trimesh in the XY plugin.

pShowTMesh.sm (53 KiB) downloaded 53 time(s).

Best regards.
Alvaro.

3 users liked this post

Вячеслав Мезенцев 11/6/2021 4:23:00 AM, Fridel Selitsky 11/4/2021 10:02:00 PM, sergio 11/5/2021 5:32:00 AM

#453 Posted: 11/16/2021 3:07:16 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Plugin updated.

Changes:

- fixed problem when copying a region (some properties of the chart style were not copied).

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

João Felipe Seráfico Melo 11/16/2021 3:08:00 PM, sergio 11/16/2021 5:39:00 PM

#454 Posted: 11/16/2021 4:52:25 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

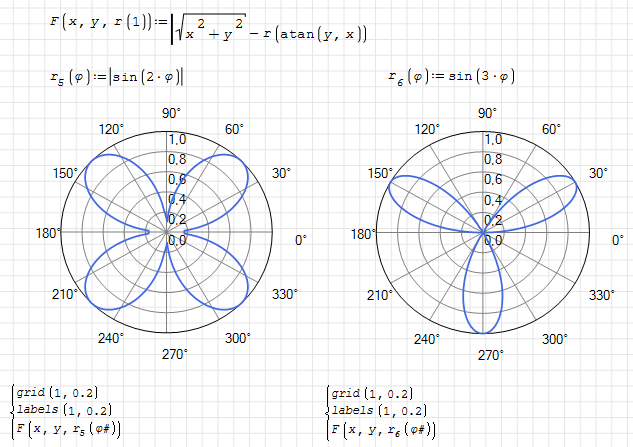

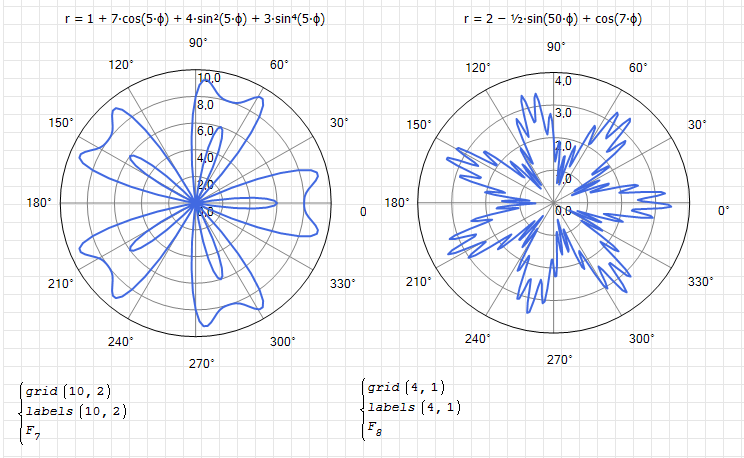

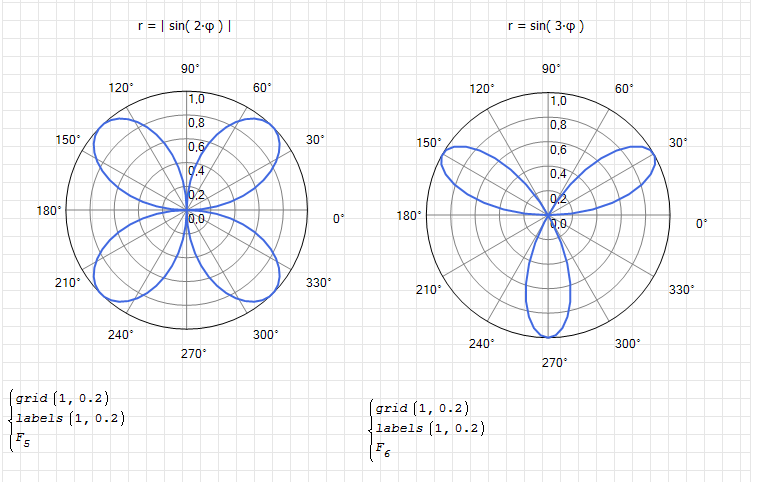

Linear polar examples.

XYPlot. Linear polar.sm (56 KiB) downloaded 367 time(s).
XYPlot. Linear polar.pdf (134 KiB) downloaded 282 time(s).

Russia ☭ forever, Viacheslav N. Mezentsev

5 users liked this post

João Felipe Seráfico Melo 11/16/2021 5:02:00 PM, Alvaro Diaz Falconi 11/16/2021 5:09:00 PM, sergio 11/16/2021 5:39:00 PM, overlord 11/16/2021 8:27:00 PM, Davide Carpi 11/17/2021 8:31:00 AM

#455 Posted: 11/16/2021 7:33:09 PM

Alvaro Diaz Falconi

992 likes in 1674 posts.

Group: User

Wrote
Linear polar examples.

Hi. Very nice and useful plots. In some cases you can get more or less the same result with less effort using the plugin's ability to graph implicit functions.

Best regards.
Alvaro.

5 users liked this post

overlord 11/16/2021 9:53:00 PM, Davide Carpi 11/17/2021 8:31:00 AM, NDTM Amarasekera 11/17/2021 3:13:00 AM, sergio 11/17/2021 8:25:00 AM, Вячеслав Мезенцев 11/17/2021 3:27:00 AM

#456 Posted: 11/18/2021 10:57:35 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Plugin updated.

Changes:

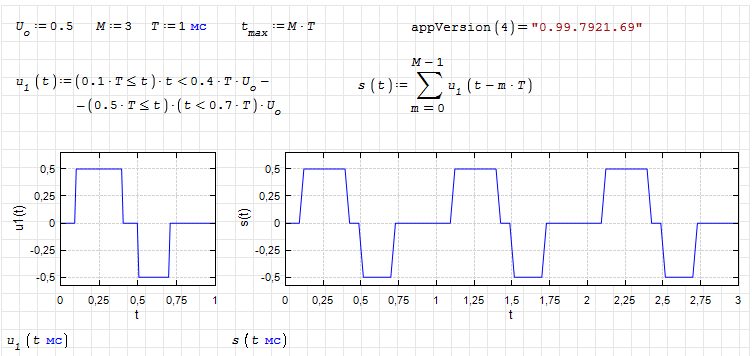

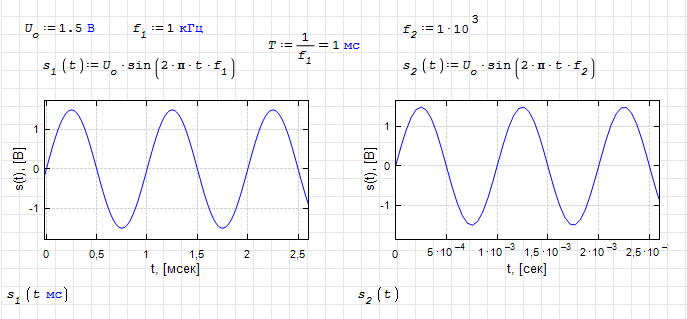

- restored the ability to use units in arguments.

Russia ☭ forever, Viacheslav N. Mezentsev

3 users liked this post

NDTM Amarasekera 11/18/2021 12:45:00 PM, João Felipe Seráfico Melo 11/18/2021 11:01:00 AM, sergio 11/18/2021 11:33:00 AM

#457 Posted: 12/14/2021 10:22:20 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Plugin updated. It works, but the component is still not stable.

Changes:

- added support for parametric plot type.

'~' is used as a mark for the "range" variable and should only be used inside the X-Y Plot. When used in conjunction with ODE solvers (with a lspline() function), too many calculations are obtained and it is impossible to use this method.

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

sergio 12/14/2021 11:36:00 AM, Martin_B 12/14/2021 2:08:00 PM

#458 Posted: 12/14/2021 6:10:33 PM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Plugin updated.

Changes:

- some broken functionality repaired;
- fixed error in determining the field width for vertical axes;
- the decimal symbol is taken from the program settings now;
- the midpoint is replaced by the multiplication sign ×;
- added the ability to change the scales of the axes using the mouse wheel;
- refactored.

File not found. File not found.

Russia ☭ forever, Viacheslav N. Mezentsev

1 users liked this post

sergio 12/15/2021 6:53:00 AM

#459 Posted: 12/17/2021 6:56:28 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Plugin updated.

Changes:

- fixed a critical error when copying a region;
- rendering of linetypes (dash, ...) slightly changed (enlarged);
- added support for automatic drawing of the region when the document autocalculation mode is enabled (for now only for zoom mouse event).

Russia ☭ forever, Viacheslav N. Mezentsev

2 users liked this post

João Felipe Seráfico Melo 12/17/2021 9:21:00 AM, sergio 12/17/2021 8:03:00 AM

#460 Posted: 12/17/2021 9:17:09 AM

Вячеслав Мезенцев

1402 likes in 1708 posts.

Group: Moderator

Plugin updated.

Changes:

- returned red border on error;
- more complete support for auto-recalculation mode.

Russia ☭ forever, Viacheslav N. Mezentsev

3 users liked this post

Martin_B 12/18/2021 5:28:00 PM, João Felipe Seráfico Melo 12/17/2021 9:21:00 AM, sergio 12/17/2021 11:03:00 AM
