Very good job, Alvaro. Now gamma is an explicit function in Azimuth-Elevation coordinates.
I will use this function as it allows you to change the viewpoint in azimuth and elevation.
Thank you very much.
Fridel.
#82 已发布: 2020/12/12 13:00:16
grelkin2

grelkin2

14个赞,共67个帖子。

组: User

Hmm. Someone told about parameterize equation.
System from #78
plos.avi (3.28 MiB)已下载 564 次。
#83 已发布: 2020/12/15 04:47:34
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Distance and projection of a point onto a parametric surface
...



Hi. Maybe it's cosmetic, or not, but the rotation matrix don't need the last column for the 2D projection. So, you don't have to use col (X*lambda, n), just multiply by lambda. That's clean up a lot the code. Also add your azimuth and elevation, which it's 145,48 degrees, without the need of Euler angles.

ParSur.sm (82.76 KiB)已下载 1735 次。

Best regards.
Alvaro.
1位用户喜欢此帖子
Fridel Selitsky 2020/12/15 06:17:00
#84 已发布: 2020/12/15 07:25:55
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Thank you Alvaro. Two columns instead of three in the rotation matrix make it easy to convert a 3D plot to 2D.
#85 已发布: 2020/12/17 01:17:49
grelkin2

grelkin2

14个赞,共67个帖子。

组: User

I could rotate with breaking the equation. Is this natural?
rot.avi (2.93 MiB)已下载 580 次。
#86 已发布: 2020/12/21 15:15:45
grelkin2

grelkin2

14个赞,共67个帖子。

组: User

Some ellipse
Ref
el.avi (1.14 MiB)已下载 560 次。
#87 已发布: 2021/4/18 14:18:45
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Wrote

Distance and projection of a point onto a parametric surface


ParSur.sm (74.98 KiB)已下载 1901 次。
ParSur.pdf (619.79 KiB)已下载 1267 次。

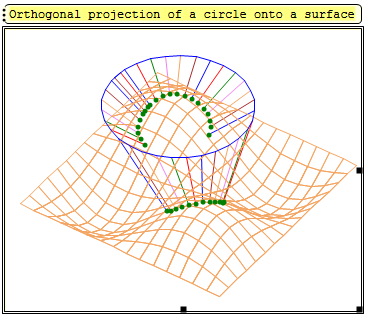

Projection of a curve onto a surface
Computing the projection of a point onto a surface is to find a closest point
on the surface, and projection of a curve onto a surface is the locus of all
points on the curve project onto the surface.
projection (7).png

projection.sm (22.03 KiB)已下载 1712 次。
projectionB.sm (34.01 KiB)已下载 1729 次。
2位用户喜欢此帖子
Alvaro 2021/4/18 14:35:00, Andrey Ivashov 2021/4/18 16:03:00
#88 已发布: 2021/4/19 03:53:00
Laurent Fournier

Laurent Fournier

9个赞,共66个帖子。

组: User

Wow.
In fact, this whole series on the Draghilev method, 3D to 2D projections etc. is one of the most fascinating of this forum...
#89 已发布: 2021/4/19 13:42:04
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Тhank you for your interest in the Topic.
Remarks:
1,Unlike the previous examples, the last file does not use dragilev's method.
2.Bar structure analogy.A heavy hoop is pivotally attached to weightless rods
that rest on an uneven surface.The slope of each bar coincides with the surface
ormal at the foothold point. Consequently, the rods perceive only normal (compressive) load.
#90 已发布: 2021/4/20 05:57:28
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi Ber. As usual, your samples are amazing.

Wrote

...
1,Unlike the previous examples, the last file does not use dragilev's method.



It could be interesting convert it to Dragilev's method. I don't have enough time right now.

Wrote


2.Bar structure analogy.A heavy hoop is pivotally attached to weightless rods
that rest on an uneven surface.The slope of each bar coincides with the surface
ormal at the foothold point. Consequently, the rods perceive only normal (compressive) load.



Oh! I try to understand that, but can take a while. Well, I understand now why it could be important. In the mean time, here a faster version, with some margin notes.

projection.sm (62.32 KiB)已下载 1780 次。
projection.pdf (840.02 KiB)已下载 1156 次。

Best regards.
Alvaro.
1位用户喜欢此帖子
Fridel Selitsky 2021/4/20 08:12:00
#91 已发布: 2021/4/20 07:11:58
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Hi,Alvaro.In my version 0.99.7610 your file is not loading. I will study your program
on PDF. your wonderful examples are very expressive and aesthetic . Thank you ,Fridel.
#92 已发布: 2021/4/20 07:45:41
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

Hi,Alvaro.In my version 0.99.7610 your file is not loading. I will study your program
on PDF. your wonderful examples are very expressive and aesthetic . Thank you ,Fridel.



Hi Fridel. I check the upload file, it's ok for me. But have something wrong, because I can't upload it to the cloud version: just it do nothing. I delete the text regions with math, and substitute them with the usual math region with a line, and then can upload: https://en.smath.com/cloud/worksheet/mgSbWNUw (obviously doesn't work there because the al_nleqsol plugin fails). Here the file:

projection_without_txt_region.sm (57.05 KiB)已下载 1753 次。

Best regards.
Alvaro.
#93 已发布: 2021/4/20 08:11:17
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

The file has loaded and is working . Thank you.
#94 已发布: 2021/4/25 08:57:00
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

IHi,Alvaro .In my version 0.99.7610 green dots are displayed
as unicode characters.Until I understand what is the reason.
Fridel.


#95 已发布: 2021/4/25 13:46:25
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Wrote

IHi,Alvaro .In my version 0.99.7610 green dots are displayed
as unicode characters.Until I understand what is the reason.
Fridel.

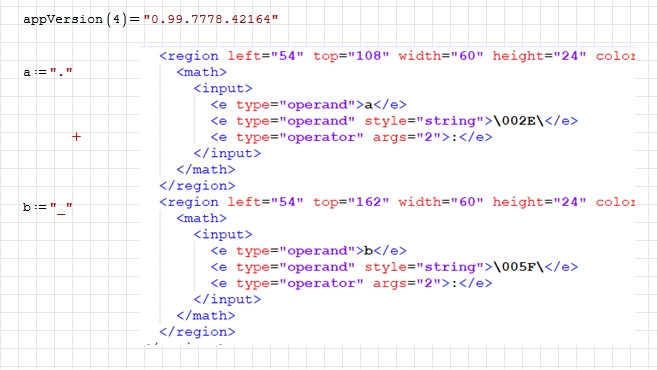

Hi Friedel. Nice, you're looking the matrix as hexadecimal. It could be better than reading it in binary, like in the movie. That, or this bug:

test.sm (2.5 KiB)已下载 1787 次。


Best regards.
Alvaro.
1位用户喜欢此帖子
Fridel Selitsky 2021/4/25 14:40:00
#96 已发布: 2021/4/28 00:54:59
grelkin2

grelkin2

14个赞,共67个帖子。

组: User

Draghilev method with variation. Also working superb
dragvar.avi (4.89 MiB)已下载 575 次。
#97 已发布: 2021/10/8 16:43:15
алексей

алексей

17个赞,共78个帖子。

组: User

#98 已发布: 2021/11/5 11:13:35
алексей

алексей

17个赞,共78个帖子。

组: User

Maple
1. 2

#99 已发布: 2021/11/20 06:38:40
grelkin2

grelkin2

14个赞,共67个帖子。

组: User

Метод чувствителен к выбору начального положения. Существуют области устойчивости и неустойчивости. Области зависят от выбранной точности. Не все координаты из областей устойчивости дают все решения при смене знака у дополнительно введенного параметра.
[ENG]
The method is sensitive to the choice of initial position. There are regions of stability and instability. The regions depend on the chosen accuracy. Not all coordinates from the regions of stability give all solutions when the sign of the additionally introduced parameter changes.

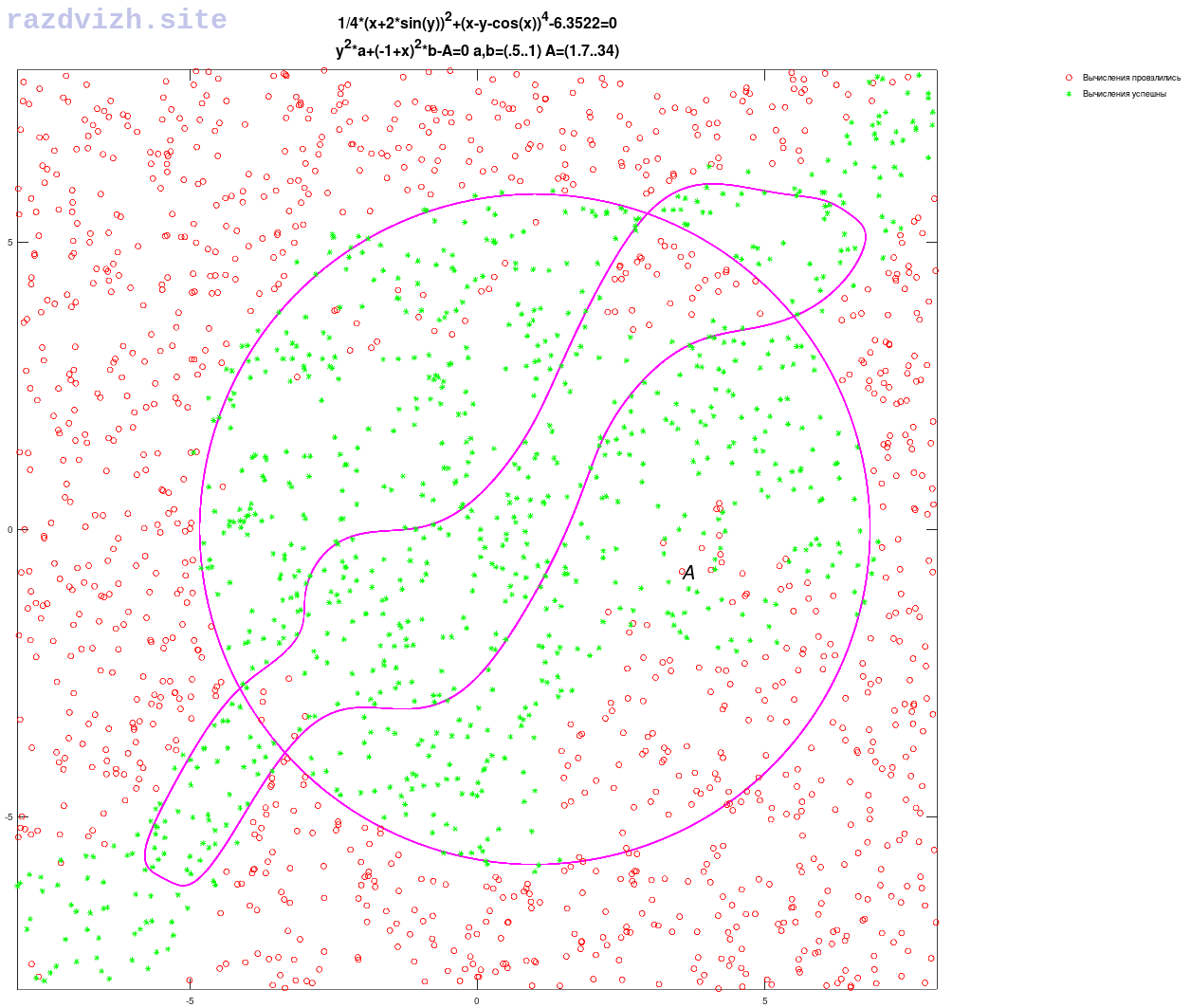

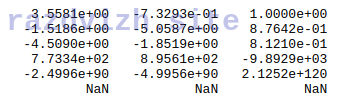

На рис. pol1 представлены две кривые и точки. Красным и зеленым цветом показаны точки начального положения для расчета пересечения по методу Драгилева. Красный цвет означает, что в результате решения значение достигли Nan (т.е. бесконечности); зеленый, что решения не достигли Nan. На рис. pol2 представлено для красной точки А расчеты с достижением Nan.
[ENG]
Figure pol1 shows the two curves and points. Red and green show the initial position points for calculating the intersection by the Dragilev method. Red indicates that the solutions reached Nan (i.e., infinity); green indicates that the solutions did not reach Nan. Figure pol2 shows for red point A the calculations with reaching Nan.

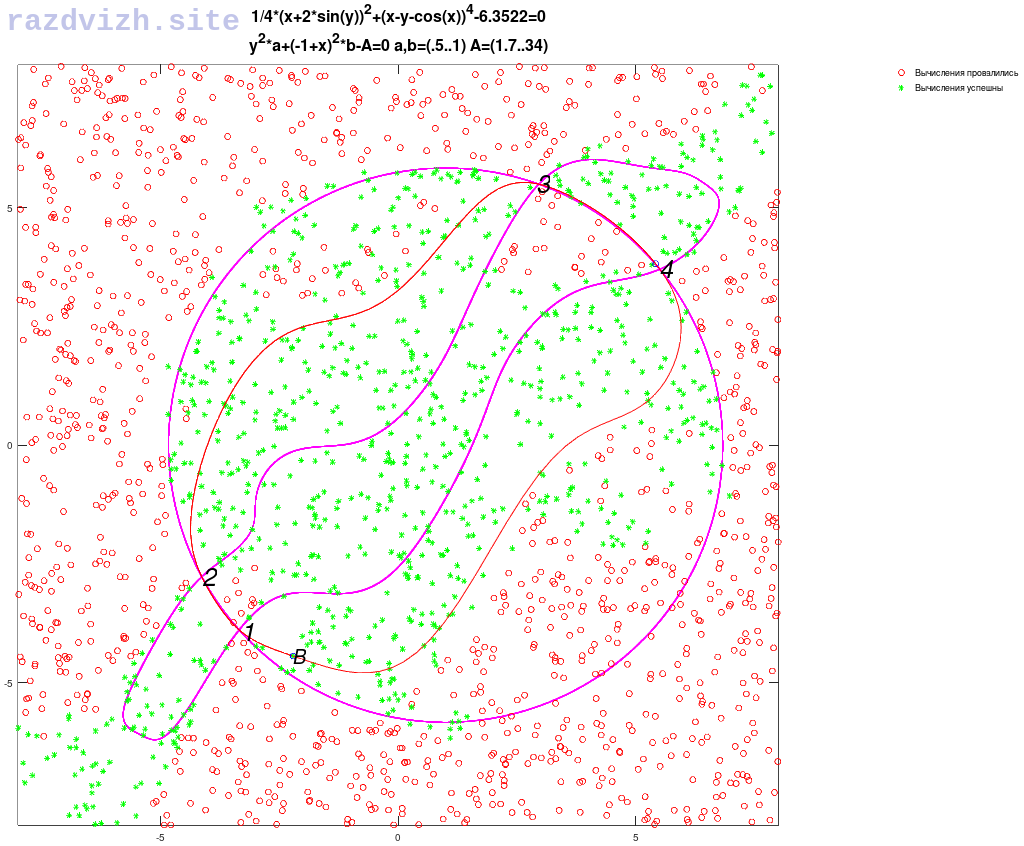

На рис. pol3 представлены три кривые и точки. Третья кривая построена через зеленую точку B. Видно что она пересекает две начальные кривые в точках пересечения 1,2,3,4
[ENG]
Figure pol3 shows three curves and points. The third curve is drawn through the green point B. You can see that it intersects the two initial curves at the intersection points 1,2,3,4
На анимации представлено изменение кривой 2 и области устойчивости и неустойчивости
[ENG]
The animation shows the change of curve 2 and the region of stability and instability
pol.avi (3.81 MiB)已下载 579 次。
#100 已发布: 2022/11/4 10:29:34
алексей

алексей

17个赞,共78个帖子。

组: User

It turned out that Draghilev's method is capable of solving Diophantine equations.
Can be viewed here.
