Application of the method A.B. Draghilev to the calculation of the kinematics and animation
spatial mechanisms developed prof.A.B.Ivanov, that
develops method A.B. Draghilev to solve practical problems.
Their development, with detailed explanations,
he published on the site
http://forum.exponenta.ru/viewtopic.php?t=12842
The following examples are taken from this site and transferred from Maple in the programming environment SMath Studio.
A huge thanks to Alexei Ivanov, who gave me great help in the study the method of A.B .Draghilev.
1.Explanatory example
http://ru.smath.info/forum/yaf_postst2304_Primienieniie-mietoda-A-B--Draghilieva-k-raschietu-polozhienii-i-animatsii-miekhanizmov.aspx
2位用户喜欢此帖子
Davide Carpi 2014/1/31 06:17:00, Andrey Ivashov 2016/5/7 09:54:00
#2 已发布: 2014/1/26 03:18:11
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

One end of the rod moves in the spatial
curve, the other along a circular arc.


Primer3.smz (8.47 KiB)已下载 1845 次。
3位用户喜欢此帖子
Andrey Ivashov 2016/5/7 09:54:00, Radovan Omorjan 2014/1/26 03:39:00, Davide Carpi 2014/1/31 06:17:00
#3 已发布: 2014/1/26 03:21:47
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Three-link spatial mechanism


PrUgol.smz (10.85 KiB)已下载 1754 次。
3位用户喜欢此帖子
Davide Carpi 2014/1/31 06:39:00, Andrey Ivashov 2016/5/7 09:54:00, Radovan Omorjan 2014/1/26 03:39:00
#4 已发布: 2014/1/26 03:25:04
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Spatial four-bar linkage1



Spatial four-bar linkage 2


未找到文件。未找到文件。
3位用户喜欢此帖子
Radovan Omorjan 2014/1/26 03:39:00, Davide Carpi 2014/1/31 06:39:00, Andrey Ivashov 2016/5/7 09:54:00
#5 已发布: 2014/1/26 03:30:32
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Cardan Mechanism.The axes of rotation intersect at an angle of 45 degrees


KardanHadash1.sm (89.92 KiB)已下载 1726 次。
3位用户喜欢此帖子
Andrey Ivashov 2016/5/7 09:54:00, Davide Carpi 2014/1/31 06:39:00, Radovan Omorjan 2014/1/26 03:38:00
#6 已发布: 2014/4/11 02:45:17
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Animation curve, which is defined implicitly
Each loop equation "cam"-an implicit function F (x, y) = 0
  Examples taken from the site

http://forum.exponenta.ru/viewtopic.php?t=12842




Kardeoida.smz (7.21 KiB)已下载 1729 次。
2位用户喜欢此帖子
Andrey Ivashov 2016/5/7 09:54:00, Davide Carpi 2014/4/19 09:30:00
#7 已发布: 2014/5/2 17:06:20
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

The line of intersection of the torus and sphere(Villarceau circles)
This example is taken from an article by Дубанов А.А. :Численно-аналитическое
построение линий пересечения поверхностей методом Драгилева,2007(rus)
http://www.blagovest2002.narod.ru/2005/SurfInt/paper1/Paper1.htm



Villarceau.smz (9.76 KiB)已下载 1805 次。
2位用户喜欢此帖子
Davide Carpi 2014/5/5 03:14:00, Andrey Ivashov 2016/5/7 09:54:00
#8 已发布: 2014/5/12 14:02:38
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Wrote

Cardan Mechanism.The axes of rotation intersect at an angle of 45 degrees




The same mechanism with spherical linkages
These linkages have the property that
every link in the system rotates about the same fixed point. Thus, trajectories of
points in each link lie on concentric spheres with this point as the center. Only the
revolute joint is compatible with this rotational movement and its axis must pass
through the fixed point.
3位用户喜欢此帖子
Davide Carpi 2014/5/16 12:38:00, Andrey Ivashov 2016/5/7 09:54:00, Martin Kraska 2014/5/12 16:40:00
#9 已发布: 2014/5/16 07:03:17
Davide Carpi

Davide Carpi

1,443个赞,共2,936个帖子。

组: Moderator

I can't see the last image (neither in the russian side of the forum)
If you like my plugins please consider to support the program buying a license; for personal contributions to me: paypal.me/dcprojects
#10 已发布: 2014/5/16 11:01:47
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Link to the file and image:
https://smath.com/wiki/GetFile.aspx?File=Guk.gif
KardanHadash.smz (11.17 KiB)已下载 1712 次。
2位用户喜欢此帖子
Davide Carpi 2014/5/16 12:38:00, Andrey Ivashov 2016/5/7 09:53:00
#11 已发布: 2014/6/2 11:36:46
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Ring instead of cross-piece

KardanHadash3.smz (13.52 KiB)已下载 1792 次。
2位用户喜欢此帖子
Andrey Ivashov 2016/5/7 09:53:00, Davide Carpi 2015/7/19 16:45:00
#12 已发布: 2015/7/18 10:45:48
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

3-PRS Parallel Manipulator



Tripod2s.smz (15.86 KiB)已下载 1766 次。
2位用户喜欢此帖子
Andrey Ivashov 2016/5/7 09:53:00, Davide Carpi 2015/7/19 16:45:00
#13 已发布: 2015/8/30 17:51:05
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

The Delta Parallel Robot
Kinematic scheme and dimensions are taken from the book
R.L. Williams II, “The Delta Parallel Robot: Kinematics Solutions”, Internet Publication,
April 2015.


未找到文件。 未找到文件。
Delta.pdf (542.51 KiB)已下载 1244 次。
2位用户喜欢此帖子
Andrey Ivashov 2015/9/1 19:03:00, Davide Carpi 2015/8/31 18:12:00
#14 已发布: 2015/9/14 05:37:56
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

RSCRmod.sm (106.29 KiB)已下载 1639 次。The RSCR spatial mechanism.
The calculation is borrowed from the publication of Alexey Ivanov

http://www.mapleprimes.com/posts/201080-RSCR-Spatial-Mechanism
A case where the axis of rotation are perpendicular


RSCRmechanism.smz (15.17 KiB)已下载 1827 次。
2位用户喜欢此帖子
Davide Carpi 2015/9/14 06:23:00, Andrey Ivashov 2016/5/7 09:53:00
#15 已发布: 2015/10/23 17:19:26
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Again The Delta Parallel Robot.Winding onto a cylindrical mandrel


Delta2.smz (601.62 KiB)已下载 1892 次。
2位用户喜欢此帖子
Davide Carpi 2015/10/23 18:56:00, Andrey Ivashov 2016/5/7 09:53:00
#16 已发布: 2015/10/27 12:26:45
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Delta3.smz (600.17 KiB)已下载 1904 次。Version for conical spiral
2位用户喜欢此帖子
Davide Carpi 2015/11/21 13:42:00, Andrey Ivashov 2016/5/7 09:52:00
#17 已发布: 2015/11/21 08:37:36
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Delta0C.smz (321.09 KiB)已下载 1816 次。In the above animation three links that support the lower platform is a simplified and
presented in the form of red rods. Actually used parallelograms (pantographs), where top and
bottom mounted universal (cardan) joints. Each universal joint implemented using Three
revolute joints . The axis of the middle joints lies in the plane of the parallelogram, and
axis external joints perpendicular to this plane. Animation of this design is shown below.

2位用户喜欢此帖子
Davide Carpi 2015/11/21 13:42:00, Andrey Ivashov 2016/5/7 09:52:00
#18 已发布: 2016/5/7 07:55:01
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

Graf.smz (144.8 KiB)已下载 1770 次。Spatial (spherical) Cam
The idea is taken from here
http://www.mapleprimes.com/questions/209853-Is-It-Possible-To-Get-This-In-MapleSim-#comment225311



2位用户喜欢此帖子
Andrey Ivashov 2016/5/7 09:52:00, Davide Carpi 2016/5/9 05:31:00
#19 已发布: 2016/7/30 07:23:41
Fridel Selitsky

Fridel Selitsky

520个赞,共451个帖子。

组: User

A mechanisms similar to slider crank mechanism
These mechanisms are shown Alexey B. Ivanov on the website
https://vk.com/away.php?to=http%3A%2F%2Fwww.mapleprimes.com%2Fposts%2F204684-Lever-Mechanisms



未找到文件。未找到文件。
1位用户喜欢此帖子
Davide Carpi 2016/8/1 18:52:00
#20 已发布: 2016/8/2 15:22:02
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Thanks Ber7 for your repost/new animations. Some don't work in Smath 5346,
so what. Animation is a very nice feature from Smath.

Jean

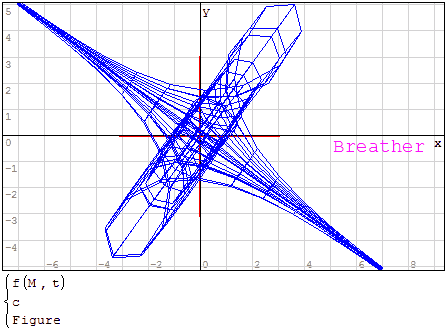

Breather AnimRot.gif

Rotate XY.sm (474 KiB)已下载 1681 次。
