Hi,

I have two local stiffness matrices (6x6) calculated in SMath. Now I want to assemble them into a single global stiffness matrix (8x8):



Red numbers represent degrees of freedom. The assemblage is done in such a way that terms from these two local matrices which correspond to the same degree of freedom have to be added. So for example I take the term 5-5 (column numbered as 5 and row numbered as 5) from k1 and add it to the term 5-5 from k2. The problem is that these terms are located in different parts of the matrices. For example aforementioned term 5-5 is actually in the 3rd column and 3rd row of the first matrix, in the 5th column and 5th row of the second matrix and goes to the same place (5th column, 5th row) of the global matrix. Of course I can do it manually but it's a lot of work for larger matrices (even here it takes some time). Is there an automated way to do it in SMath ?

Thanks in advance for your help.
#2 已发布: 2021/5/29 14:39:20
EngMath

EngMath

0个赞,共51个帖子。

组: User

Thanks for reply. I've seen this sample. It's really great but I'm not sure how to proceed in my case. I attached the .sm file.

Stiffness matrix.sm (40.39 KiB)已下载 1588 次。
#3 已发布: 2021/5/29 17:19:17
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

Thanks for reply. I've seen this sample. It's really great but I'm not sure how to proceed in my case. I attached the .sm file.

Stiffness matrix.sm (40.39 KiB)已下载 1588 次。

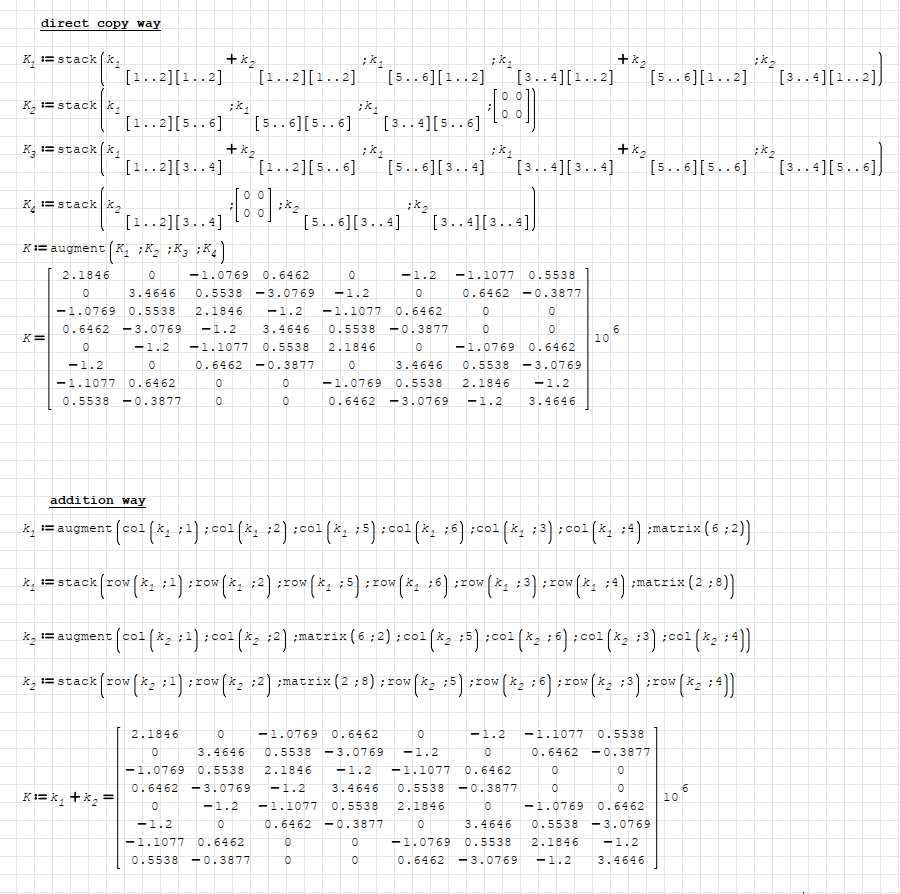

There should be two ways for three methods I could think of.
I won't add algorithm style here, these are enough I guess.

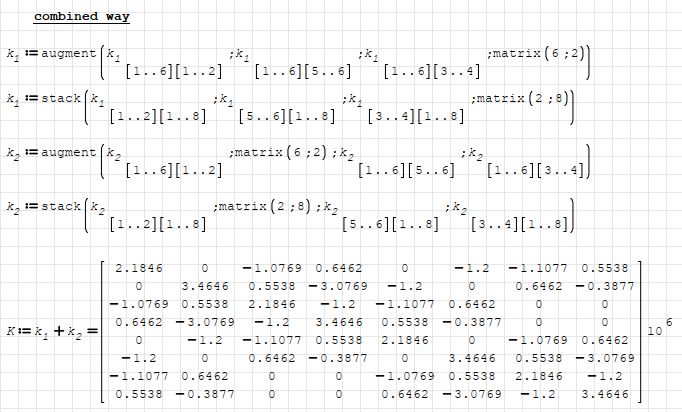

You can also combine method1 and method2 but I wouldn't call this a new way.

Regards

Stiffness matrix_rev.sm (58.83 KiB)已下载 1518 次。


2位用户喜欢此帖子
EngMath 2021/5/30 08:57:00, sergio 2021/5/30 12:06:00
#4 已发布: 2021/5/29 18:11:08
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. As Overlord says, there are an algorithmic way. You can try it also.

Stiffness matrix.sm (33.14 KiB)已下载 1563 次。

Best regards.
Alvaro.
1位用户喜欢此帖子
sergio 2021/5/30 12:06:00
#5 已发布: 2021/5/29 19:08:14
EngMath

EngMath

0个赞,共51个帖子。

组: User

Thank you very much. After the assembly, selected rows and columns of the global stiffness matrix have to be removed to account for boundary conditions. For example I would like to delete columns 1-4 and rows 1-4. So far I was just manually rewriting remaining terms to new matrix (K_new) but again it's quite tedious work. What's the best way to do it automatically in SMath ? Column and row numbers for deletion are not always ordered like that. For example it could be 2 an 5-8 as well.
#6 已发布: 2021/5/29 20:02:54
Alvaro

Alvaro

1,139个赞,共1,805个帖子。

组: User

Hi. Check alg(#,#,#) and minor(#,#,#), both are in the matrix toolbar.

Best regards.
Alvaro.
#7 已发布: 2021/5/29 20:36:09
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

Wrote

Thank you very much. After the assembly, selected rows and columns of the global stiffness matrix have to be removed to account for boundary conditions. For example I would like to delete columns 1-4 and rows 1-4. So far I was just manually rewriting remaining terms to new matrix (K_new) but again it's quite tedious work. What's the best way to do it automatically in SMath ? Column and row numbers for deletion are not always ordered like that. For example it could be 2 an 5-8 as well.

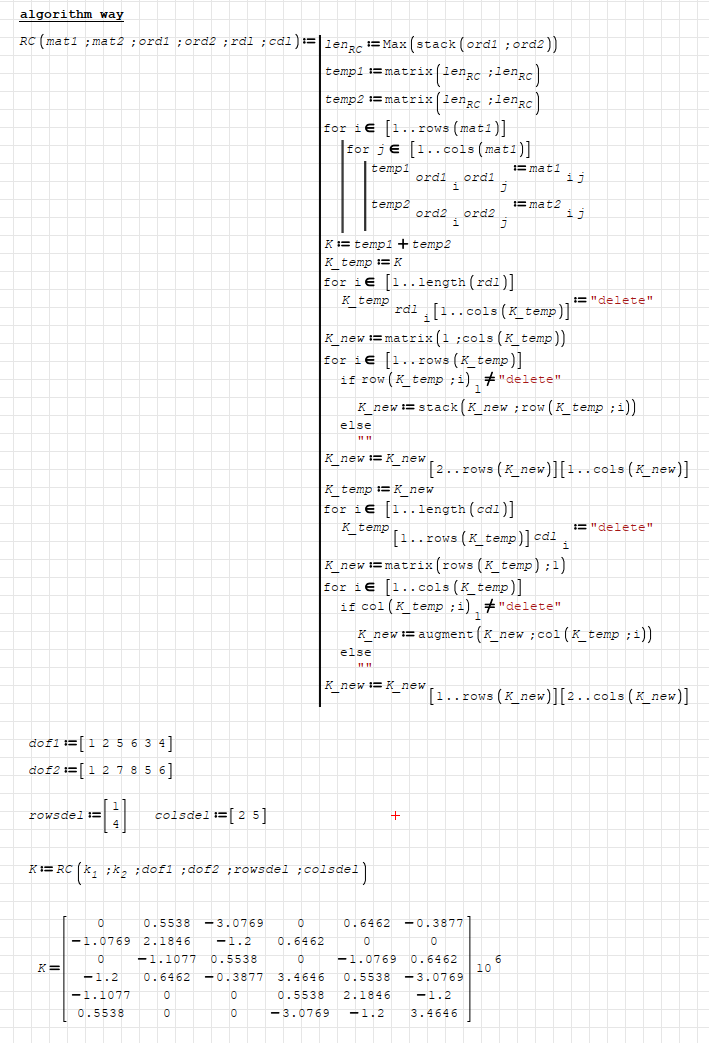

Is this what you are wishing to accomplish?
Specified rows and columns automatically removed from matrix.
There are also matrix extension commands to remove columns and rows.
But I wanted to write those functions without extension.

Regards

PS: If you want to see the results without removal,
assigning rowsdel=[9] and colsdel=[9] shall be enough.
The rowsdel and colsdel should always be a vector.

Stiffness matrix_rev2.sm (45.88 KiB)已下载 1493 次。

#8 已发布: 2021/5/29 21:19:05
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Check alg(#,#,#) and minor(#,#,#), both are in the matrix toolbar.


They are both resident since my first SS 5346
duplicate of vminor from f(x) menu and duplicate of panel Minor,
as exemplified in disambiguation from Samples document.

#9 已发布: 2021/5/29 21:25:02
overlord

overlord

600个赞,共1,381个帖子。

组: Moderator

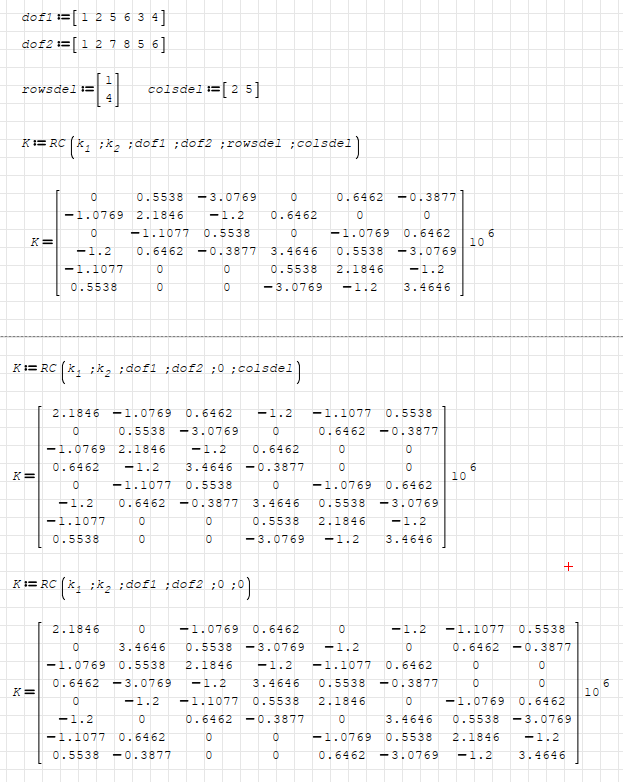

Better removal for columns and rows added, algorithm rewritten.
And much more conventional way for not removal implemented.
Entering zero for not remove wanted row or col is easier.

Regards

Stiffness matrix_rev3.sm (53.26 KiB)已下载 1530 次。

1位用户喜欢此帖子
EngMath 2021/5/30 08:57:00
#10 已发布: 2021/5/30 08:44:11
Alvaro Gavilán-Rojas

Alvaro Gavilán-Rojas

26个赞,共68个帖子。

组: User

Hi EngMath! I have some documents that I used for my Finite Element Method course. I automatized that assembly task. Attached here:

01 - 1-element bar: 01-BARRAS DE 2 ELEMENTOS.sm (137.11 KiB)已下载 1514 次。

02 - 2-element bar: 02-BARRAS DE 3 ELEMENTOS.sm (54.96 KiB)已下载 1510 次。

03 - trusses: 03-ARMADURAS.sm (124.94 KiB)已下载 1495 次。

04 - 1-element frame: 04-PORTICO DE 1 BARRA.sm (58.66 KiB)已下载 1419 次。

05 - 2-element frame: 05-PORTICO DE 2 BARRAS.sm (60.4 KiB)已下载 1475 次。

06 - 3-element frame: 06-PORTICO DE 3 BARRAS.sm (65.22 KiB)已下载 1497 次。

07 - plates: 07-PLACAS.sm (132.32 KiB)已下载 1536 次。

08 - axisymmetry: 08-AXISIMETRIA.sm (393.43 KiB)已下载 1512 次。

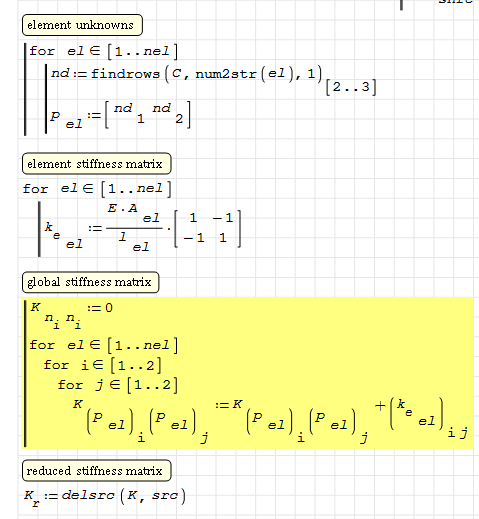

In all of them you will find my algorithm for the assembly task. You will find also the reduced stiffness matrix, I created functions to delete specific rows and columns.

Documents {01,02}, {04,05,06} are the same, only with different number of rows (I created those this way to use it quickly in the SS Android version).

Screenshot 2021-05-30 075710.png
4位用户喜欢此帖子
EngMath 2021/5/30 08:57:00, Alvaro 2021/5/30 12:54:00, sergio 2021/5/30 15:41:00, ioan92 2026/2/12 18:26:11
#11 已发布: 2021/5/30 08:56:26
EngMath

EngMath

0个赞,共51个帖子。

组: User

I combined this with previous code for matrix assembly and it works great.

Thanks again, you guys are awesome, you really helped me a lot. And thank you Alvaro for sharing your FEM implementations in SMath. The 7th one (plates) is just what I'm working on now.
#12 已发布: 2021/5/30 09:25:44
Alvaro Gavilán-Rojas

Alvaro Gavilán-Rojas

26个赞,共68个帖子。

组: User

Great! Glad it helped! I made some quick translations to my plate worksheet.

07-PLATES.sm (135.65 KiB)已下载 1536 次。

07-PLATES.pdf (502.29 KiB)已下载 1041 次。

07-PLATES (with code).pdf (540.7 KiB)已下载 1113 次。
1位用户喜欢此帖子
EngMath 2021/5/30 10:18:00
#13 已发布: 2021/5/30 10:18:15
EngMath

EngMath

0个赞,共51个帖子。

组: User

Great, thanks Alvaro :-) Are these examples from some book ?
#14 已发布: 2021/5/30 11:38:32
Alvaro Gavilán-Rojas

Alvaro Gavilán-Rojas

26个赞,共68个帖子。

组: User

You're welcome EngMath! Yes, they are from Introduction to Finite Elements in Engineering by Chandrupatla and Belegundu.
You can download it here:
https://1drv.ms/b/s!Ap2rcjsf-xok1woTCf8p26Qpw5Hn?e=SkhCnB
1位用户喜欢此帖子
EngMath 2021/5/30 12:58:00
#15 已发布: 2021/5/30 13:47:20
Martin Kraska

Martin Kraska

1,362个赞,共2,276个帖子。

组: Moderator

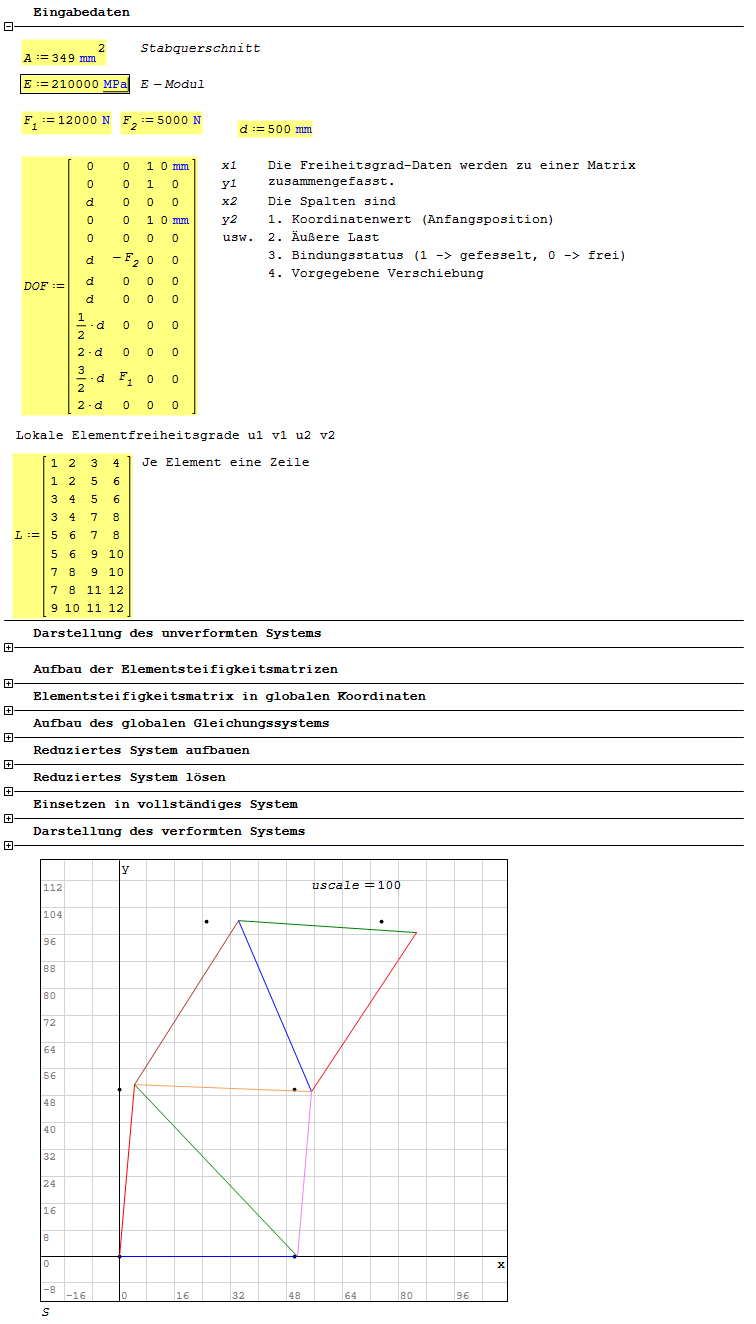

This example shows the use of an index vector (f, contains the unconstrained dofs) for reduction of the global system.

The input is via dof and connectivity tables.

Each bar element has 4 dofs defined by a line in the connectivity matrix
Each global dof is a line in the dof matrix with each containing

- initial position
- external nodal load
- constraint flag (1-constrained, 0-free)
- prescribed displacement (only relevant if dof is constrained, can be nonzero)


Fachwerk UE2.sm (80.72 KiB)已下载 1541 次。
Fachwerk UE2.png
Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9
1位用户喜欢此帖子
sergio 2021/5/30 15:40:00
#16 已发布: 2021/5/31 09:02:39
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

Red numbers represent degrees of freedom. The assemblage is done in such a way that terms from these two local matrices which correspond to the same degree of freedom have to be added. So for example I take the term 5-5 (column numbered as 5 and row numbered as 5) from k1 and add it to the term 5-5 from k2. The problem is that these terms are located in different parts of the matrices. For example aforementioned term 5-5 is actually in the 3rd column and 3rd row of the first matrix, in the 5th column and 5th row of the second matrix and goes to the same place (5th column, 5th row) of the global matrix. Of course I can do it manually but it's a lot of work for larger matrices (even here it takes some time). Is there an automated way to do it in SMath ?


Stifness matrix is not my discipline.
From square/rectangular matrix ...
You can extract paired symmetric [5,5] or asymmetric [2,5] col/row.
Extract...single col, single row.
You can delete pair wise single col/row or any cols/rows in any combination.
You can delete only col or only row.

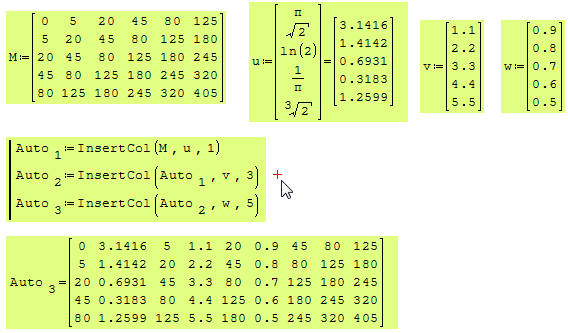

Once in hand the new matrix, you can insert valued col or row
or col & row anywhere in the new matrix.
That step is one by one at this point of my proposal, might be automated.
All that from minimalist handling matrix.
Your 'K' matrices don't speak to me ... more visible example would help.
Cheers ... Jean
#17 已发布: 2021/5/31 10:41:02
Jean Giraud

Jean Giraud

983个赞,共6,866个帖子。

组: User

Wrote

might be automated.


... ½ automated left for clic/clic/DONE gurus.


#18 已发布: 2022/4/19 19:13:30
⠀

⠀

26个赞,共155个帖子。

组: User

Any ideas on how to integrate internal releases into the 2D Frame stiffness matrices?

2022-04-19 18_07_29-9780128117088.pdf - Adobe Acrobat Reader DC (32-bit).png

Seems to be a few 2D truss projects, and some 2D Frame projects, but I'm curious about internal releases for frame structures.
Maybe someone can save me a deep dive into my old text books.
Thanks
#19 已发布: 2022/4/20 05:38:23
Alvaro Gavilán-Rojas

Alvaro Gavilán-Rojas

26个赞,共68个帖子。

组: User

Wrote

Any ideas on how to integrate internal releases into the 2D Frame stiffness matrices?

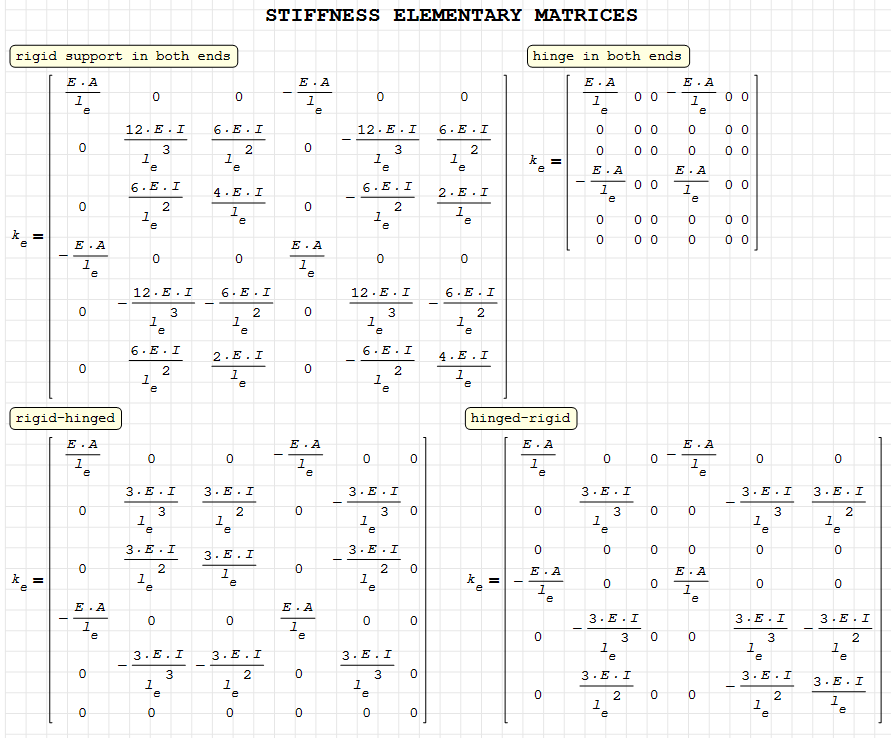

Screenshot 2022-04-21 113007.png

Here I attach the other elementary stiffness matrices. I didn't tested these in FE programs (always worked with rigid-rigid ends in FE), but when I was student of indeterminate structures (displacement method) I did some demonstrations of stiffness factors for each case, and these are well verified (except for the last page, that I wrote a few minutes ago just to complete the case of unitary rotation about the hinge (not needed for displacement method)).

Having in mind that the k(i,j) element of an elementary stiffness matrix is the reaction value in the j-displacement direction caused by an i-unitary displacement, you could trace each of the values found in my demonstrations.

Hope it works for you and please comment if it did once you have implemented it into your code.

I attach those demonstrations too (in spanish, but structural mechanics is a universal language :d )

Regards!

Alvaro

未找到文件。未找到文件。
5位用户喜欢此帖子
sergio 2022/4/20 06:36:00, Alvaro 2022/4/20 12:36:00, ⠀ 2022/4/20 13:40:00, churichuro 2022/4/20 18:36:00, NDTM Amarasekera 2022/4/20 11:22:00
#20 已发布: 2022/4/20 13:52:32
⠀

⠀

26个赞,共155个帖子。

组: User

Wrote


Here I attach the other elementary stiffness matrices. I didn't tested these in FE programs (always worked with rigid-rigid ends in FE), but when I was student of indeterminate structures (displacement method) I did some demonstrations of stiffness factors for each case, and these are well verified (except for the last page, that I wrote a few minutes ago just to complete the case of unitary rotation about the hinge (not needed for displacement method)).

Having in mind that the k(i,j) element of an elementary stiffness matrix is the reaction value in the j-displacement direction caused by an i-unitary displacement, you could trace each of the values found in my demonstrations.

Hope it works for you and please comment if it did once you have implemented it into your code.

I attach those demonstrations too (in spanish, but structural mechanics is a universal language :d )

Regards!

Alvaro



This worked perfectly, thanks Alvaro! For now I just added an extra vector that set a condition for each member and had the stiffness and transformation matrix builder you have in your example cycle through an if statement to decide which stiffness matrix was used for each member as the total stiffness matrix is built. Attached is the modified version of your 3-beam frame example, which technically could be used for any number of beams.
I verified the results in the attached file with some 2D structural analysis software and it appears to be correct correct. Take a look and let me know. I'm sure there are more systematic ways of accomplishing this, but as a proof of concept, I'm happy with the results.

Working Stiffness Matrix Idea - Internal Releases.sm (100.3 KiB)已下载 1648 次。

Now I just need to blend some of the graphical and data input ideas from other users and make this a more functional mini 2Dstructural analysis tool. Would be nice to get working standalone exe via SMath Viewer.
